Fuel Pump Assembly: FG0924
by Delphi
Original price
$195.00
-
Original price
$195.00
Original price
$195.00
$195.00
-
$195.00
Current price
$195.00

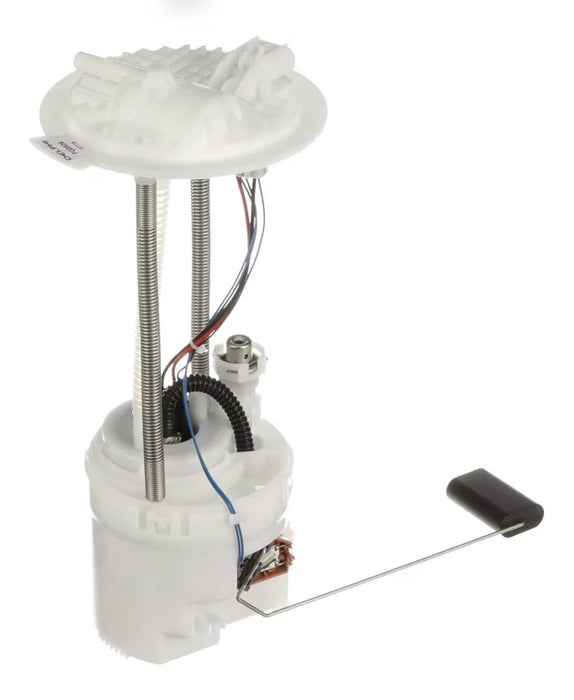

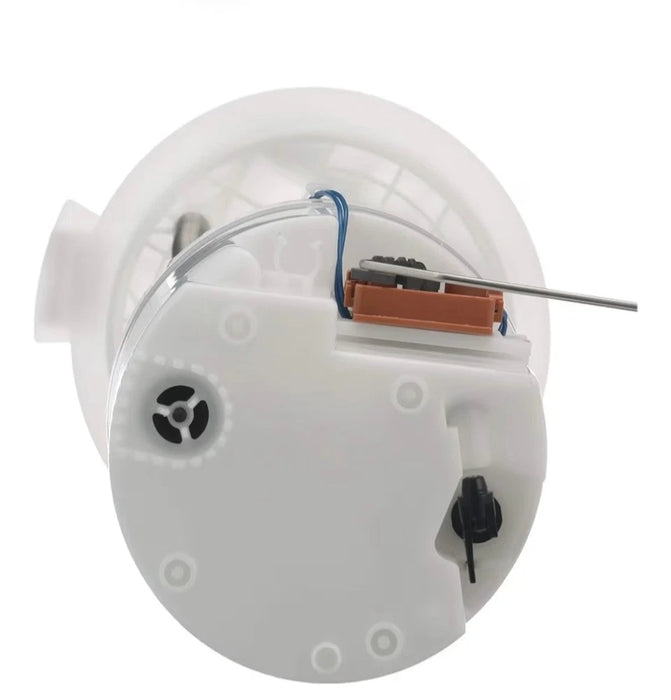

The Delphi FG0924 Fuel Pump Module Assembly is a high-quality replacement fuel pump designed to deliver reliable fuel flow and optimal performance. Engineered to meet or exceed OEM specifications, it ensures efficient fuel delivery for consistent engine operation. Built with durable materials, it resists corrosion and withstands modern fuel blends, including ethanol-blended fuels. This direct-fit replacement comes equipped with a built-in fuel level sensor (where applicable) for accurate fuel readings. Designed for easy installation, the FG0924 is an excellent choice for maintaining smooth engine performance and long-term reliability in compatible vehicles.
Vehicle Fitment
Jeep Wrangler 2.4l/4.0 2005-2006
Features
- Restores fast-pressure performance and system integrity, translating to better pumping through less energy
- Increased durability and enhanced stability due to internal springs preventing fuel tube chafing, and possible loss of fuel flow and pressure
- Better security and durability with multiple redundant buttons on the fuel level sensor versus bent fingers which can undergo premature wear, and reduced contact
- Improved durability with steel plated, all metal internal components
- Both positive displacement and turbine pumps
- Reduced potential for greenhouse gas emissions via the EVAP system because of integrated OE fuel vapor pressure sensor. The sensor is also application specific to prevent triggering the “check engine light”
- Longer pump life as a result of a two-strainer system keeping out contaminates
- Lower failure rates due to its innovative design and durability. Pumps are designed to operate under extreme temperatures, quick engine starts and to avoid low-fuel hesitation, including alcohol fuels and blends

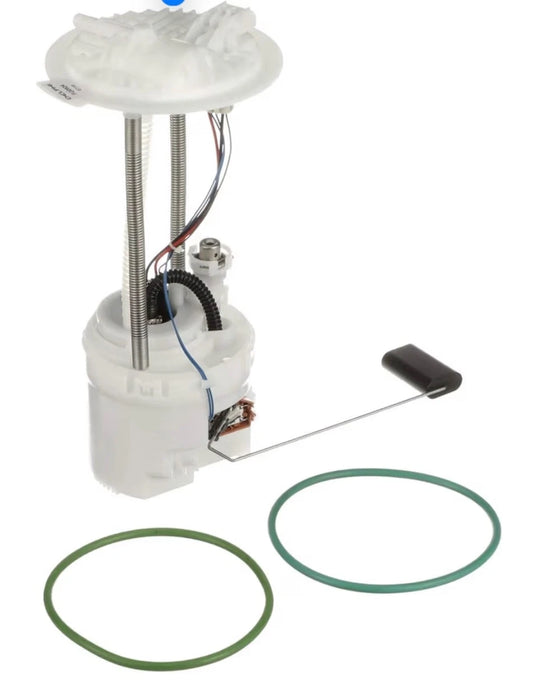

Includes
- Fuel Pump Module Assembly with Float Arm
- Seal
- Instruction Sheet
Specifications:
- System Pressure: 44 Psi
- Fuel Level Assembly Included : Yes
- Vapor Pressure sensor: No
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0375"
- Voltage: 12.0 VDC
- Fuel Type: Gas
- Regulator included: Yes
- Maximum Pressure: 58.0 PSI
- Terminal Type: Blade
- Gasket Or Seal Included: Yes
- Terminal Quantity: 4
- Terminal Gender: Male
- Strainer Included: Yes
- Inlet Type: Strainer
- Outlet Type: Quick Connect
- Outlet Quantity:1
- In Tank or External: In Tank
- Resistance Ohms Empty: 220.0
- Resistance Ohms Full: 20.0
- Internal Or External Strainer: Internal
- Current Draw: 10
- Flow Rating: 34 gph
- Pump Type : Electric
