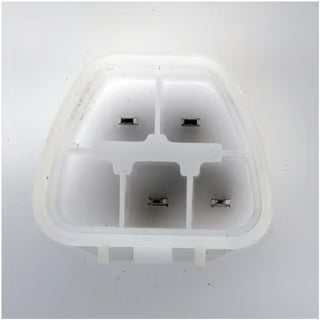

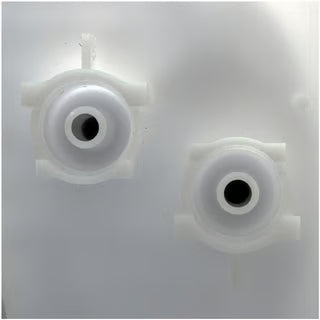

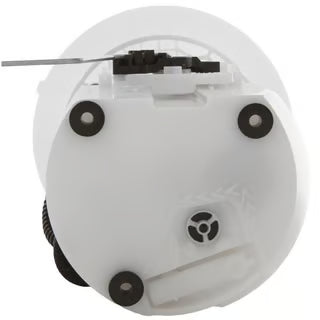

FG0931 Fuel Pump Module Assembly

The Delphi FG0931 Fuel Pump Module Assembly is a high-quality, OE-replacement fuel pump designed for optimal performance and reliability. Engineered to meet or exceed original equipment specifications, this module ensures efficient fuel delivery, enhancing engine performance and fuel efficiency. It features advanced filtration technology to protect against contaminants, reducing wear and extending the lifespan of the fuel system. Built with durable materials and rigorously tested for reliability, the Delphi FG0931 provides a precise fit for easy installation, making it a trusted choice for restoring proper fuel flow and vehicle operation.

Vehicle Fitment

Toyota   Sequoia     2008-2019

               Tundra      2007-2020

Features

• Restores fast-pressure performance and system integrity, translating to better pumping through less energy
• Increased durability and enhanced stability due to internal springs preventing fuel tube chafing, and possible loss of fuel flow and pressure
• Better security and durability with multiple redundant buttons on the fuel level sensor versus bent fingers which can undergo premature wear, and reduced contact
• Improved durability with steel plated, all metal internal components
• Both positive displacement and turbine pumps
• Reduced potential for greenhouse gas emissions via the EVAP system because of integrated OE fuel vapor pressure sensor. The sensor is also application specific to prevent triggering the “check engine light”
• Longer pump life as a result of a two-strainer system keeping out contaminates
• Lower failure rates due to its innovative design and durability. Pumps are designed to operate under extreme temperatures, quick engine starts and to avoid low-fuel hesitation, including alcohol fuels and blends

Includes

• Fuel Pump Module Assembly with Float Arm
• Seal
• Instruction Sheet

Specifications:

• System Pressure: 41 Psi
• Fuel Level Assembly Included: Yes
• Vapor Pressure sensor: No
• Item Grade: Standard Replacement
• Outlet Outside Diameter: 0375"
• Voltage: 12.0 VDC
• Fuel Type: Gas
• Regulator included: Yes
• Maximum Pressure: 78.0 PSI
• Terminal Type: Blade
• Gasket Or Seal Included: Yes
• Terminal Quantity: 4

• Terminal Gender: Male
• Strainer Included: Yes
• Inlet Type: Strainer
• Outlet Type: Quick Connect
• Outlet Quantity: 2
• In Tank or External: In Tank
• Resistance Ohms Empty: 412.0
• Resistance Ohms Full: 15.0
• Internal Or External Strainer: Internal
• Current Draw: 14
• Flow Rating: 21 gph
• Pump Type: Electric
