Barr Marine 80006 Rubber Engine Mount – Single Adjustable 3/4" Bolt

The Barr Marine 80006 is a single adjustable rubber engine mount designed for marine engines and transmissions. Featuring a 3/4"-16 UNF stud, this mount is adjustable both vertically and horizontally to facilitate precise engine-propeller shaft alignment. The rubber cushions are locked to the cast aluminum base and are oil and fuel resistant, ensuring durability and longevity in marine environments. Each mount has a capacity of 350 lbs.

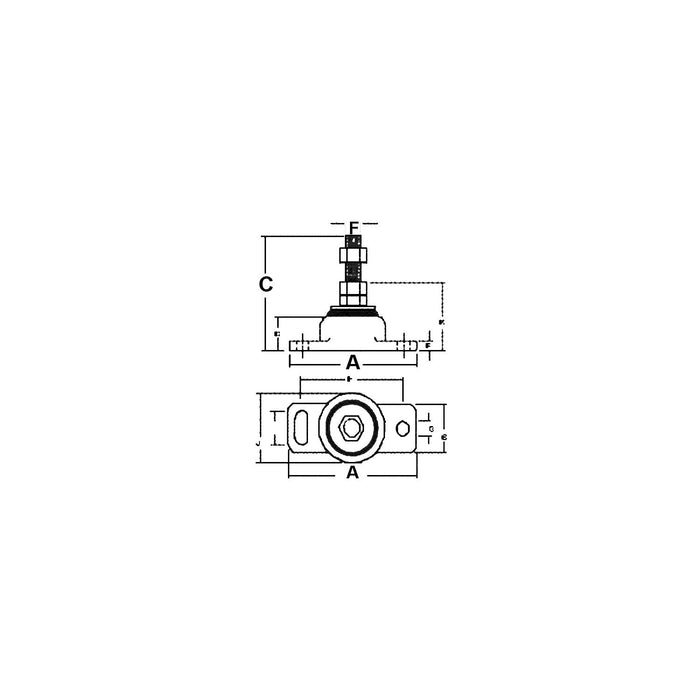

Specifications

• Stud Size: 3/4"-16 UNF

• Base Length: 5 inches

• Base Width: 1-3/4 inches

• Overall Height: 4-1/2 inches (from base to top of stud)

• Bolt Hole Center to Center: 4 inches

• Hold Down Bolt Size: 7/16 inches

• Shaft Length: 2-1/4 inches (from top of shaft to base nut)

• Capacity: 350 lbs per mount

• Material: Cast aluminum base with oil and fuel resistant rubber cushion

• Replaces: Osco DF-210, Mercury 66284A2 & 814263
